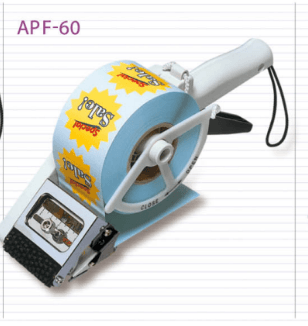

Towa APF-30, Towa APF-60
The Towa APN Label Applicators are the industry leading hand-held label applicators. With a unique and patented adjustable sensor that detects the edge of round, oval or non-rectangular labels, it applies your labels with great precision to virtually any surface. Just squeeze the trigger and apply.

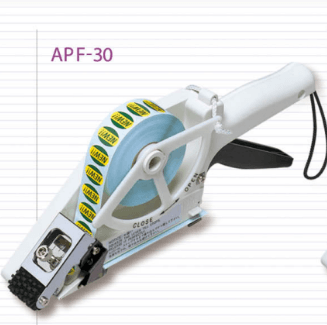

The Towa APF-30 label applicator is the perfect solution for applying PLU labels fast. If you need to apply PLU labels faster and with less effort, check out our electric plu label applicator gun CLICK HERE
Towa applicators use an exclusive label edge detector called "Mech-Sensor system" which automatically detects the leading edge of the label providing complete accuracy in dispensing. Slide the mech sensor to the left or right until it is in the center of the label. Each of three applicators can dispense any type of label and requires no special liner tool, cartridges or cassettes. There are three types of APF applicators depending on width of the labels. APF-30 is easy to handle, APF-60 is the most popular and APF-100 is convenient for wide labels.
Key Points
No feeding holes, slits or eye-marks (black marks) required on release liner
No mechanical adjustment is needed in different sizes of labels
Different size of labels within the specifications can be dispensed and applied by the specific applicator
2-3mm gap between each label is required
Max. 100mm width label can be dispensed and applied. There is no similar tool around.
The Mech-Sensor detects a height of label from 18mm up to 60mm without any adjustment.
You can use labels in roll, printed barcode labels and rewound rolls.
Â
Towa APN Applicator Specifications
Â
|
Model |
Label GAP |
Label Size STROKE | Label Size WIDTH | Max Outer Diameter |
| APF-30 | 2-3 mm | 20-60 mm | 20-30 mm | 100 mm |
| APF-60 | 2-3 mm | 20-60 mm | 20-60 mm | 100 mm |
| APF-100 | 2-3 mm | 20-60 mm | 20-100 mm | 100 mm |
Notice: The width of release liner can be applicable +2mm at both sides.
Determining Your Towa APF Applicator Needs
The following specifications offer guidelines to use when selecting the appropriate dispenser for your needs.
|
Dimension |
30mm | 60mm | 100mm |
| Roll Size | 88.9mm OD 3 1/2" |
88.9mm OD 3 1/2" |
88.9mm ODÂ 3 1/2" |
| Core Size | 25.4mm ID 1" | 25.4mm ID 1" | 25.4mm ID 1" |
| Max Label Width | 28.575mm 1 1/8" |
57.15mm 2 1/4" |
98.425mm 3 7/8" |
| Min Label Width | 20mm 13/16" |
25mm 15/16" |
55mm 2.17" |
| Max Label Repeat | 63.5mm 2 1/2" |
63.5mm 2 1/2" |
63.5mm 2 1/2" |
| Min Label Repeat | 6.35mm 1/4" |
6.35mm 1/4" |
6.35mm 1/4" |
| Die Cut Only | YES | YES | YES |
Notes:Â OD refers to "Outer Dimension" of the roll, while ID refers to "Inner Dimension" of the core. "Label Repeat" indicates the distance from the beginning of one label to the beginning of the next label.
Media Specifications
It's unnecessary to make a slit or slot on backing paper for feeding of labels.
Labels with less than 50 um thickness is unacceptable for all models.
Some types of labels (films), synthetic paper may not be supported.
Label wound-in is recommended to use.
Use only die-cut labels.
A cotton-swab moistened with ALCOHOL, is recommended to wipe adhesive from Mech-Sensor.
